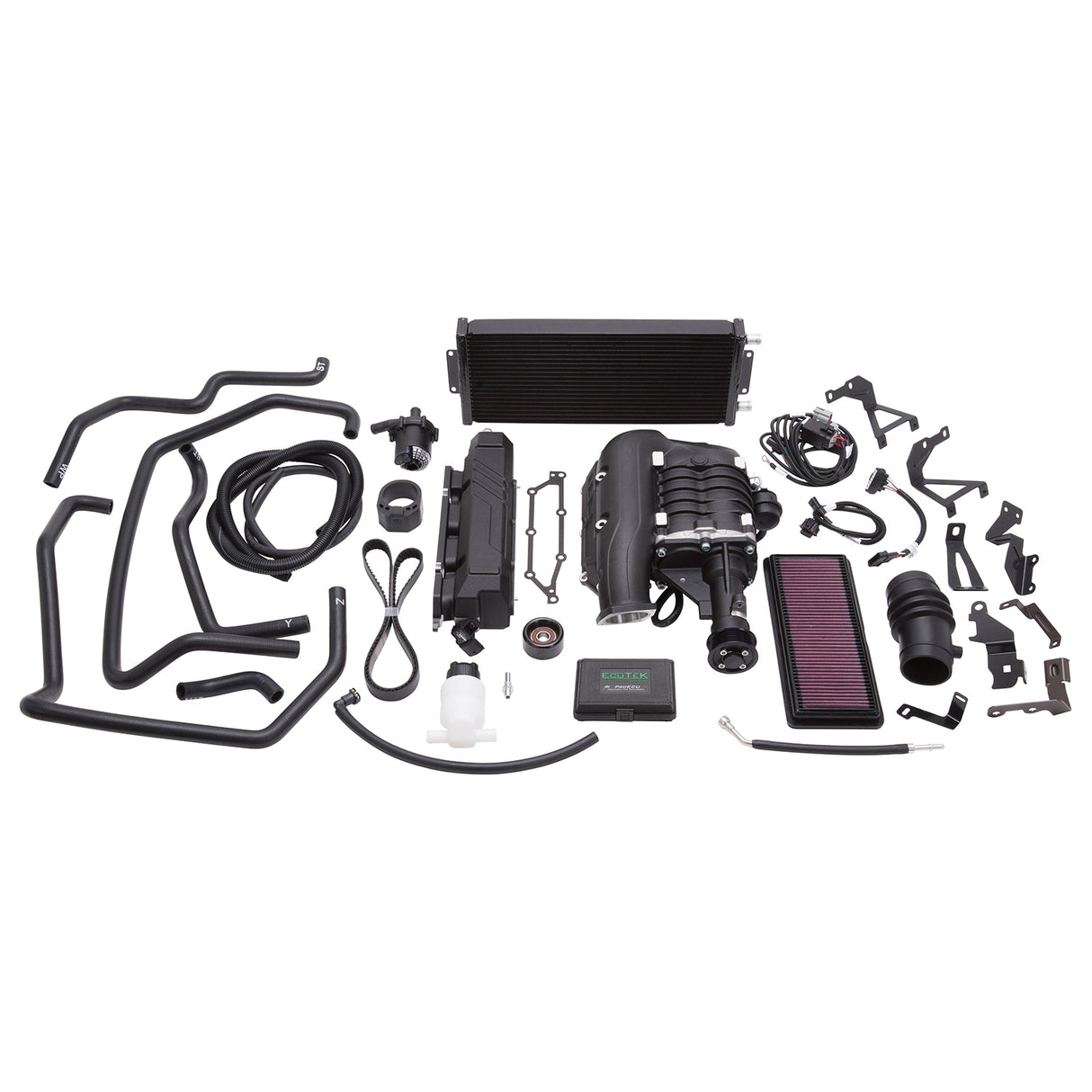

EDELBROCK / E-FORCE SUPERCHARGER KIT / WITH ECUTEK TUNER (1554) *** MAZDA MX5 MIATA (2016-2018) 2.0L ENGINE

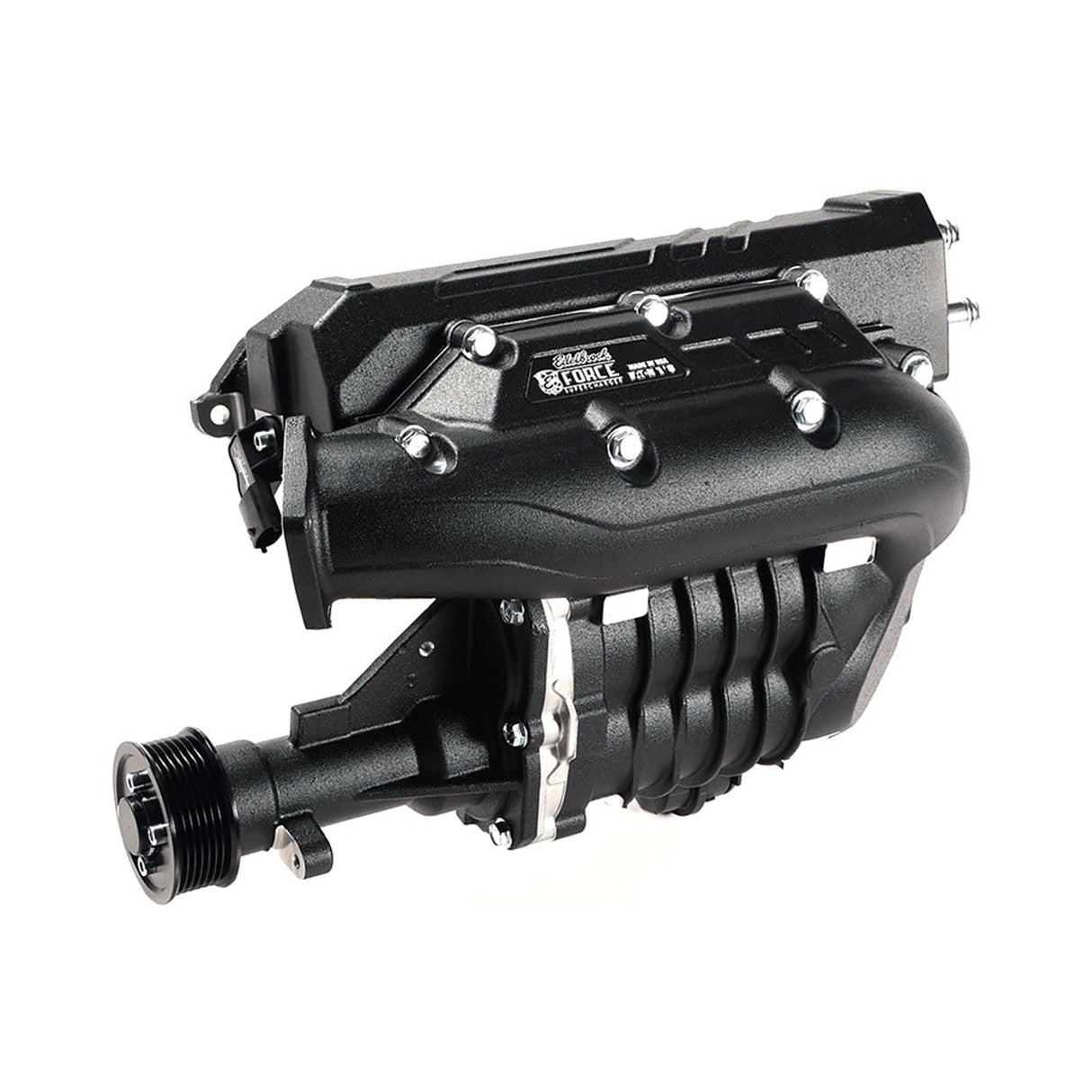

Edelbrock E-Force Supercharger kits have finally arrived for your Mazda MX-5 Miata. This E-Force Supercharger system is designed exclusively for the SKYACTIV-G 2.0L engine. Its unique design allows for maximum flow, while retaining great daily driving characteristics. It has been designed from the ground-up and utilizes the Eaton R900 TVS rotor assembly for maximum efficiency in a compact package. As with all E-Force superchargers, this system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved air flow and performance. To cool the incoming air, is a large air-to-water intercooler and heat exchanger. All of these features help the E-Force deliver dramatically improved performance with a smooth linear power curve. Lastly, the supercharger assembly is finished with a durable black powder coating for a unique look that will let everybody know your car is E-Force powered!

---

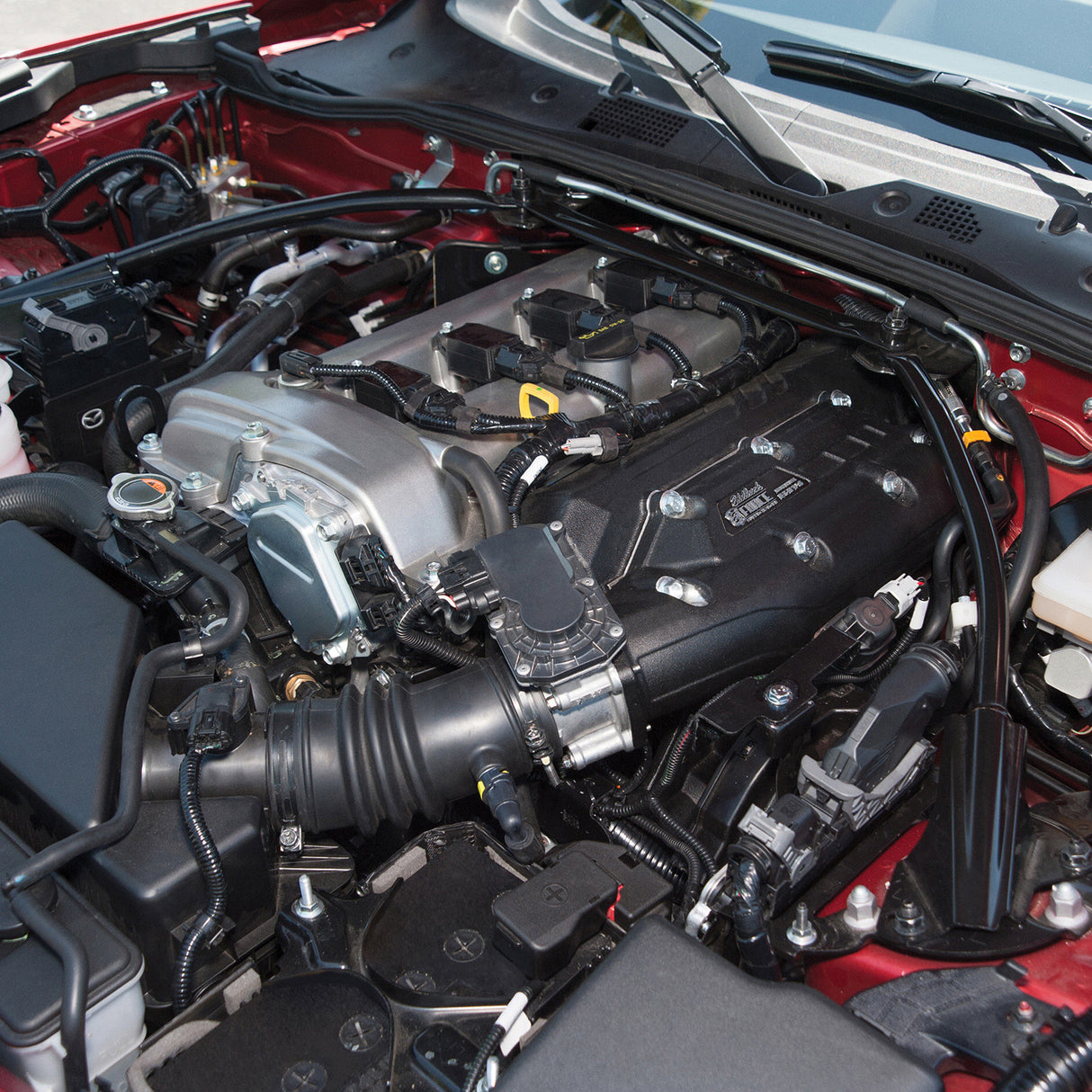

The Edelbrock Stage 1 Street Supercharger system part #1554 for 2016-2018 Mazda MX-5 Miata increases the performance of your SKYACTIV-G (2.0L) Engine to 198 RWHP and 182 TQ at the rear wheels. Its unique design utilizes the Eaton R900 TVS rotor assembly for maximum efficiency in a compact package. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance with a smooth and linear power curve. The supercharger assembly is finished with a durable black powder coating that integrates seamlessly into the Miata engine bay.

For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. Increases horsepower by 41% and torque by 36% over stock. Unique compact design fits under the stock hood. Supplied with preformed hoses for ease of installation. No trimming needed. Bolt-on installation. Everything fits right out of the box with no cutting or welding needed. Features Eaton Gen VI R900 TVS rotor assembly; the same high-quality rotors used by many OEM manufacturers. Self-contained oil system with 100,000 mile service interval (no drilling or plumbing required). Includes an EcuTek Pro ECU Programming Kit with Edelbrock tune. Integrated bypass valve for minimal decrease in fuel economy. Available with a FREE 3-year 36,000 mile powertrain warranty.

* Manufacturer: Edelbrock

* System Type: Stage 1 Street System

* Vehicle Model: Miata MX-5

* Housing Material: Cast Aluminum

* Quantity: Complete Kit

* Gasket Or Seal Included: Yes

* Oil Capacity: 125 mL

* Center Housing Cooling Type: Intercooler

* Finish: Black Powder Coated

* Maximum Boost Pressure: 8.25 PSI

* Pulley Belt Width: 6-Rib

* Outside Pulley Diameter: 2.75 Inch

* Warranty: 36 Months

* Emissions Code: EO Number: D-215-95

* Hazardous Materials Warning: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov

* Installation Notes: Supercharger systems without tuners are not eligible for supplemental warranty and are only emissions-legal when used with the correct Edelbrock program. For safety, the Edelbrock program retains the factory vehicle speed limiter setting.; Calibrations, Tuners, or Programs supplied with supercharger systems are only compatible with vehicles designed for use in the United States or Canada. Edelbrock does not offer calibration support for any vehicle designed for use outside of the United States or Canada.

---

SUPERCHARGED DYNO POWER RATING:

* 198 WHEEL HORSEPOWER

* 182 WHEEL TORQUE

---

FITS:

* 2016 MAZDA MX5 MIATA (ND) 2.0L ENGINE

* 2017 MAZDA MX5 MIATA (ND) 2.0L ENGINE

* 2018 MAZDA MX5 MIATA (ND) 2.0L ENGINE

** NOTE: Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock tune, which can be downloaded at www.edelbrock.com. For safety, the Edelbrock supplied program will retain the factory vehicle speed limiter setting.
