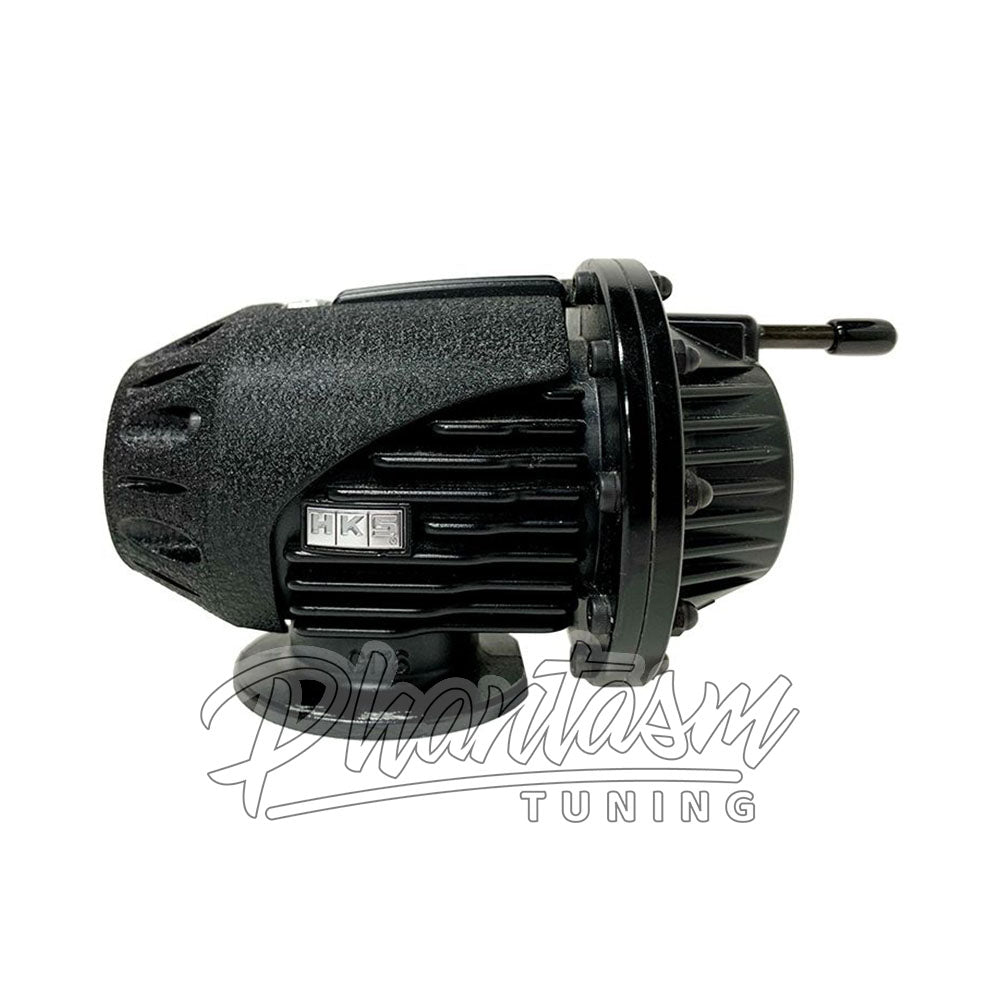

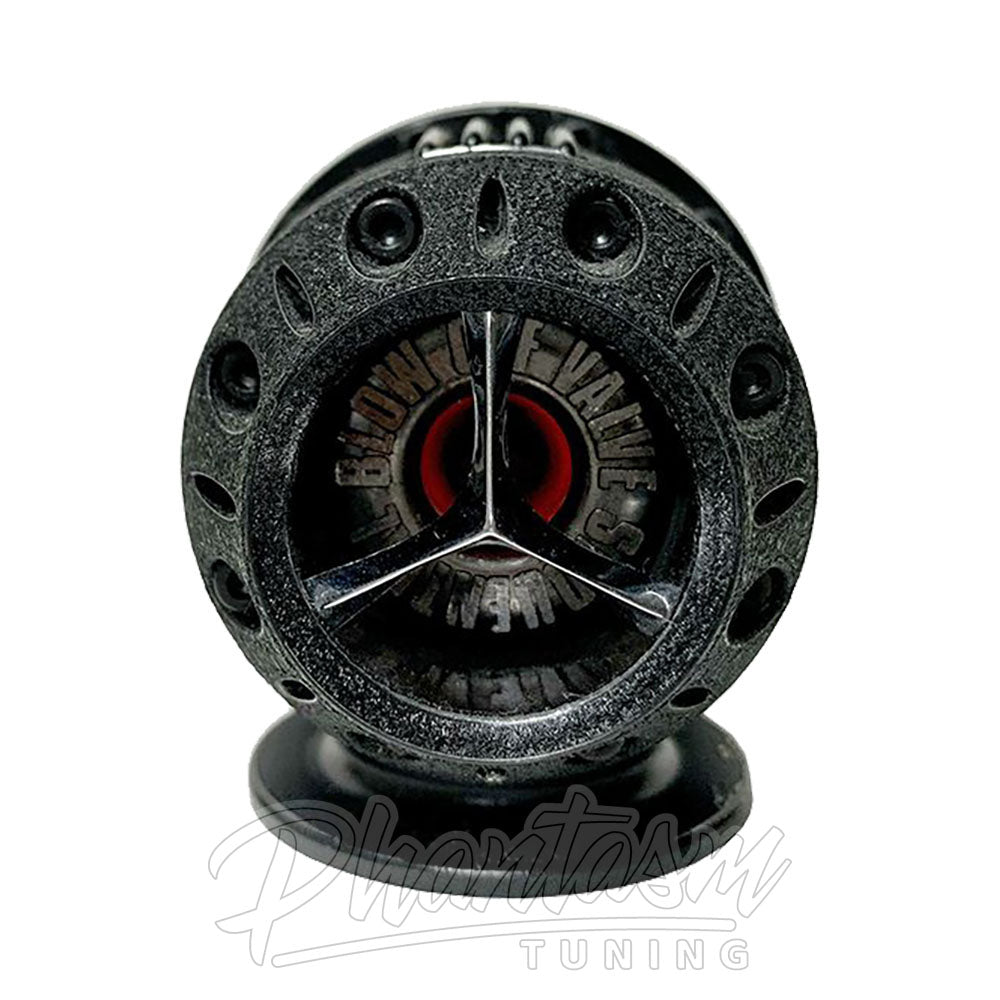

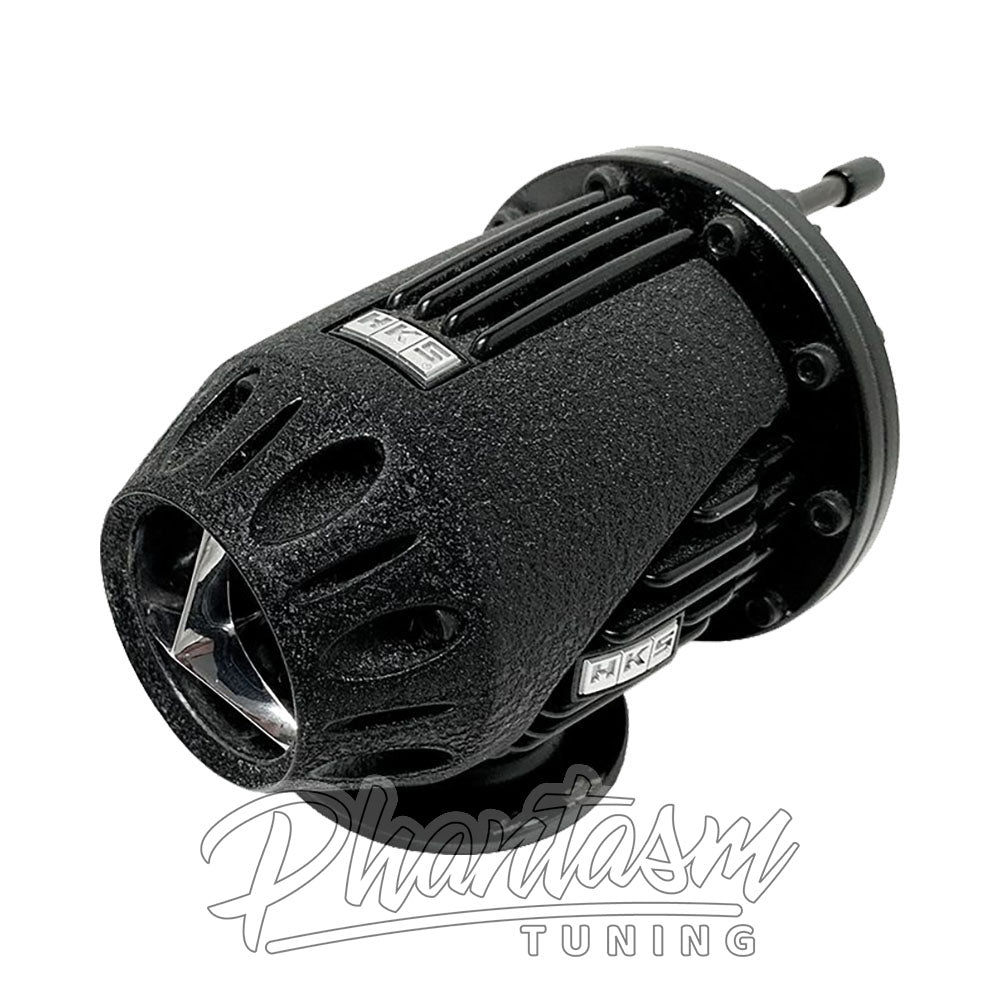

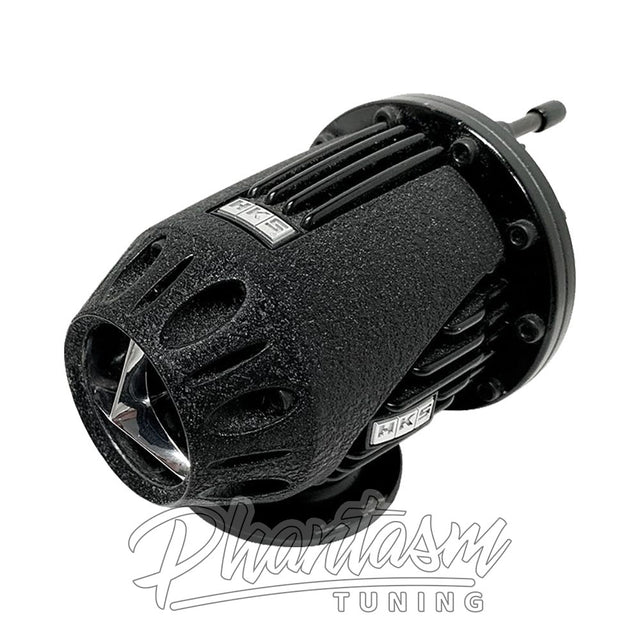

HKS / SUPER SQV4 BOV / BLOW OFF VALVE / BLACK EDITION (71008-AK005) *** UNIVERSAL APPLICATIONS

HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows for a broad operating range from low boost to high boost. Its Pull-Type relief design ensures stable operation regardless of the amount of boost pressure. The Super SQV will support new generations of turbocharged vehicles. Dual Valve Structure, Sequential System. At low boost ranges, the Primary Valve opens. And at high boost ranges, the Secondary Valve also opens, resulting in linear response and optimal blow-off operation at all boost levels.

Pull-Type blow-off valves will work for any turbocharged vehicle, from stock to highly tuned. Typical push-type blow-off valves require spring load settings for each vehicle specification. If the spring load setting is too low, the valve may leak under high boost, and the desired boost setting may not be reached. If the spring load setting is too strong, it may not open at low boost. The Super SQV will operate under any boost pressure setting without leaking.

Product Features:

* Now available in a new color. The body and upper part are painted with glossy black paint, and the funnel with grainy crystal black paint.

* High Quality Aluminum Die-Cast Body. Silver-coated aluminum die-cast body. Combining the ultimate in looks and durability in the engine compartment.

* High Stiffness Metal Die-Cast Valve. The secondary valve main portion is made of die-cast metal. Reliable operation with a beautiful look.

* Triple Fin design produces "Super Sound". Triple Fins set at the center of the funnel produce a dynamic and aggressive sound. An optional special Round Fin can be purchased separately for sound tuning.

* Pull-Type Relief Valve Operation. The Pull-Type valve operation offers more precise relief of excess boost and is compatible with a wider range of boost pressure compared to typical push-type blow-off valves.

* Primary Valve (Small). Lift off the throttle, and the primary valve instantly opens, quickly discharging initial excess boost pressure.

* Secondary Valve (Large). This valve is combined with the Primary Valve from the sequential dual valve structure. Optimal blow-off operation from how to high boost ranges without leaking.

---

FITS:

* UNIVERSAL APPLICATIONS / MAY NEED ADDITIONAL PARTS
