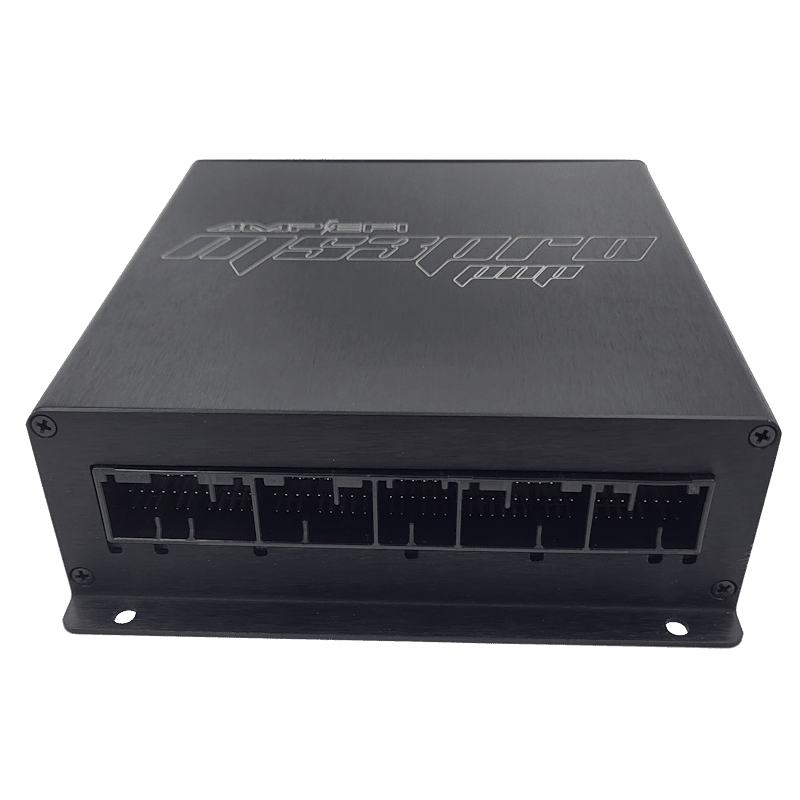

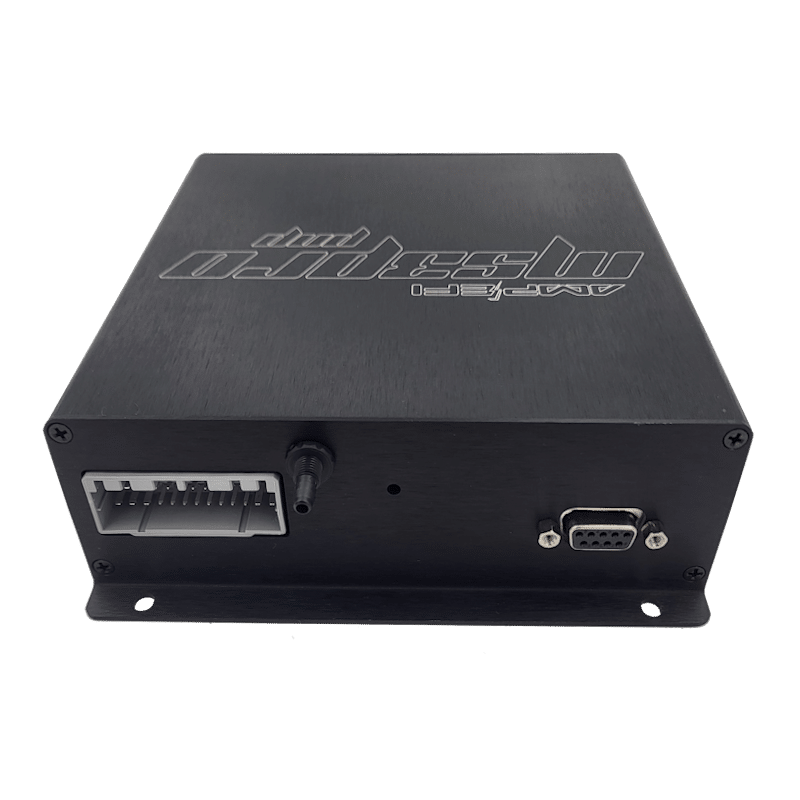

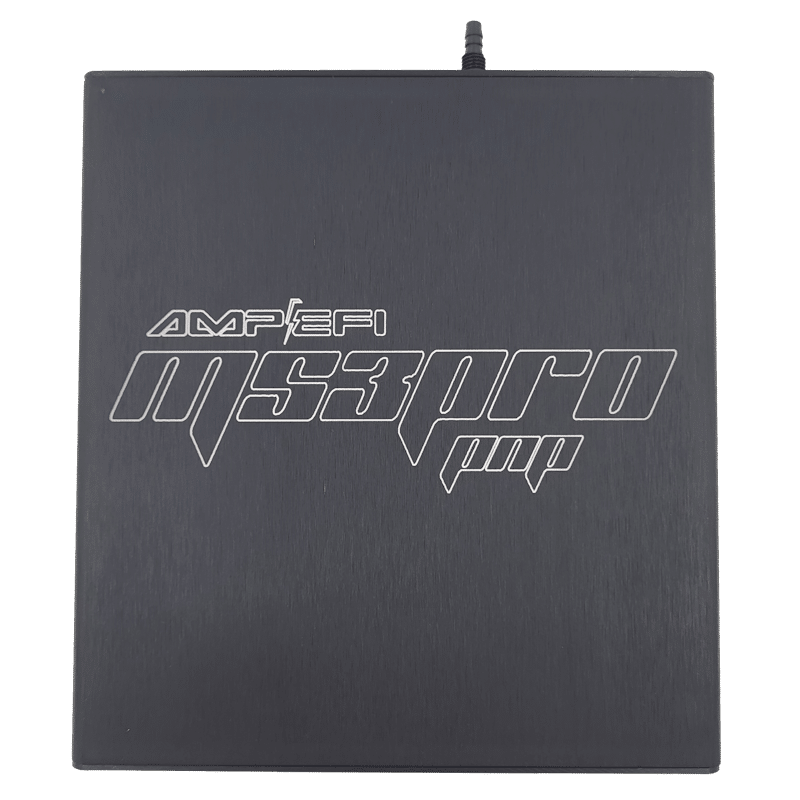

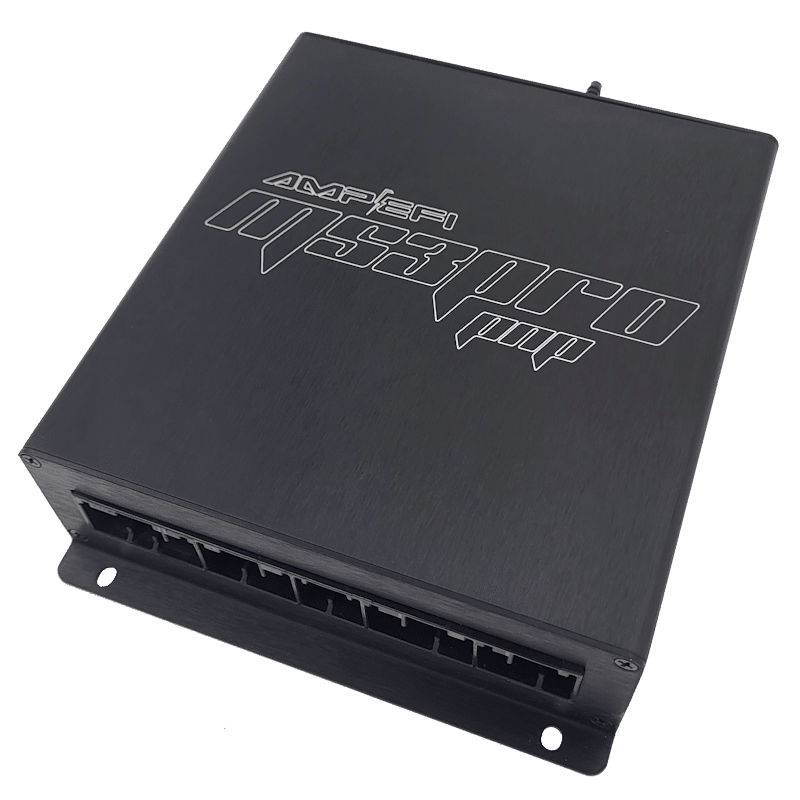

MEGASQUIRT / MS3-PRO PNP ECU / ENGINE MANAGEMENT SYSTEM (SW0205) *** SUBARU WRX (2002-2005) 2.0L TURBO

Enhance your USDM Subaru 2002-2005 "Bug Eye" Impreza WRX with the MS3-Pro Plug & Play ECU: A fully standalone, plug-and-play engine management solution designed for easy installation and maximum performance. This ECU is the ultimate choice for serious racers seeking reliable, custom-tuned engine management for off-road and motorsports applications.

Product Features:

* Fully Plug and Play Installation: No wiring required for basic functionality.

* Average Install Time: Under 1 hour!

* Base Map Pre-loaded: Helps your engine start on the first turn of the key.

* Real-Time Tuning & Data Logging: Connect via laptop for easy data monitoring.

* 8-GB Internal Data Logging: Includes built-in SD card for easy data storage.

* Supports Most Aftermarket Wideband Sensors: Integrates with popular systems for accurate tuning.

---

Fully Tunable Engine Control:

* 16×16 Fuel and Ignition Tables: High-resolution tuning for precise fuel control over fuel and ignition mapping.

* Multiple Acceleration Enrichment Strategies: Optimizes fuel and timing for acceleration.

* Closed Loop Idle Speed Control: Keeps idle stable in varying conditions.

* Air Conditioner Control: Manages AC load based on engine performance.

* 4x Sequential Fuel Injector Channels: With individual trim tables for precise fuel control.

* 4x Sequential Ignition Channels: With individual trim tables for precise ignition control.

* Onboard High Impedance Injector Drivers: Drives modern injectors efficiently.

* Allows Removal of Stock Airflow Meter: Offers more flexibility in tuning.

---

Advanced Feature Set:

* 12×12 Air-Fuel Ratio Target Tables: Use with wideband O2 sensor for precise tuning.

* AVCS (Variable Valve Timing) Support: Full factory VVT control for improved timing and performance. (for engine swaps wiring is requires into the rear options connector for Variable Valve Timing Control).

* Multiple Traction Control Strategies: Add a front wheel VSS for traction control capabilities.

* Built-in 3-Step Rev Limiter/Launch Control: Includes flat shift and burnout rev limiter.

* Real-Time Barometric Correction: Adjusts for altitude changes during tuning.

* Internal 4-Bar MAP Sensor: Reads up to 44 PSI of boost for aggressive tuning.

* Overboost Protection: Protects the engine by monitoring boost levels.

* Closed Loop Boost Control: Requires EBC solenoid kit for precise boost management.

* CO2-Based Boost Control: Allows precise boost control using CO2, enhancing performance and consistency under varying conditions.

* Rally-Style Anti-Lag: Boosts performance during launches.

* Water Injection Control: On/Off or variable control for optimized performance.

* Knock Sensor Input: Adjustable sensitivity, crank angle windowing, and more.

* Table Switching Input: Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.

* Flex Fuel Sensor Input: Seamlessly switch between E85 and gasoline.

* CANBus Connector: Allows interconnection with other MegaSquirt-compatible devices for additional functions. (EGT Input, Additional Sensors, etc.)

---

What's in the Box:

* 2002-2005 Subaru "Bug Eye" Impreza WRX MS3Pro Plug and Play ECU

* 6 Feet Vacuum Hose for MAP Signal and "T" Fitting.

* 26 Pin Connector for Options Port with 6″ Wire Pigtail.

* M8 Serial Tuning Cable.

* TunerStudio Registration Code.

---

Is this all that I need to get started tuning my WRX?

This is meant to be a complete system, including the cables needed to connect to your laptop. However, there are several other things you may wish to add to use this unit to its full potential. If you are tuning it yourself, a wideband O2 sensor system is a must have for adjusting the fuel. You can upgrade the boost control with our boost control solenoid package.

---

Does this unit support AVCS motor swaps?

Yes. Use Digital Frequency In 3 on the options port for the second cam input. You can use PWM2 and one of the high current outputs for the cam control solenoids. The high current output will need a 1N4001 diode across the solenoid, banded end to the 12 volt supply.

---

Important: This unit is designed for Manual Transmission Only and does not support Automatic Transmission Control.

Compatibility: 2002-2005 USDM Subaru "Bug Eye" Impreza WRX MSPNP-Pro ECU Supports: 2002-2005 USDM Subaru Impreza WRX: EJ205 2.0L (Manual Transmission Only)

Important Compatibility Notes: 2002-2005 USDM Subaru Impreza WRX STI: NOT Compatible

Important Compatibility Notes: 2002-2005 Subaru Impreza WRX (excluding US Market EJ205): NOT Compatible

---

FITS:

* 2002 SUBARU WRX (2.0L) TURBO

* 2003 SUBARU WRX (2.0L) TURBO

* 2004 SUBARU WRX (2.0L) TURBO

* 2005 SUBARU WRX (2.0L) TURBO
