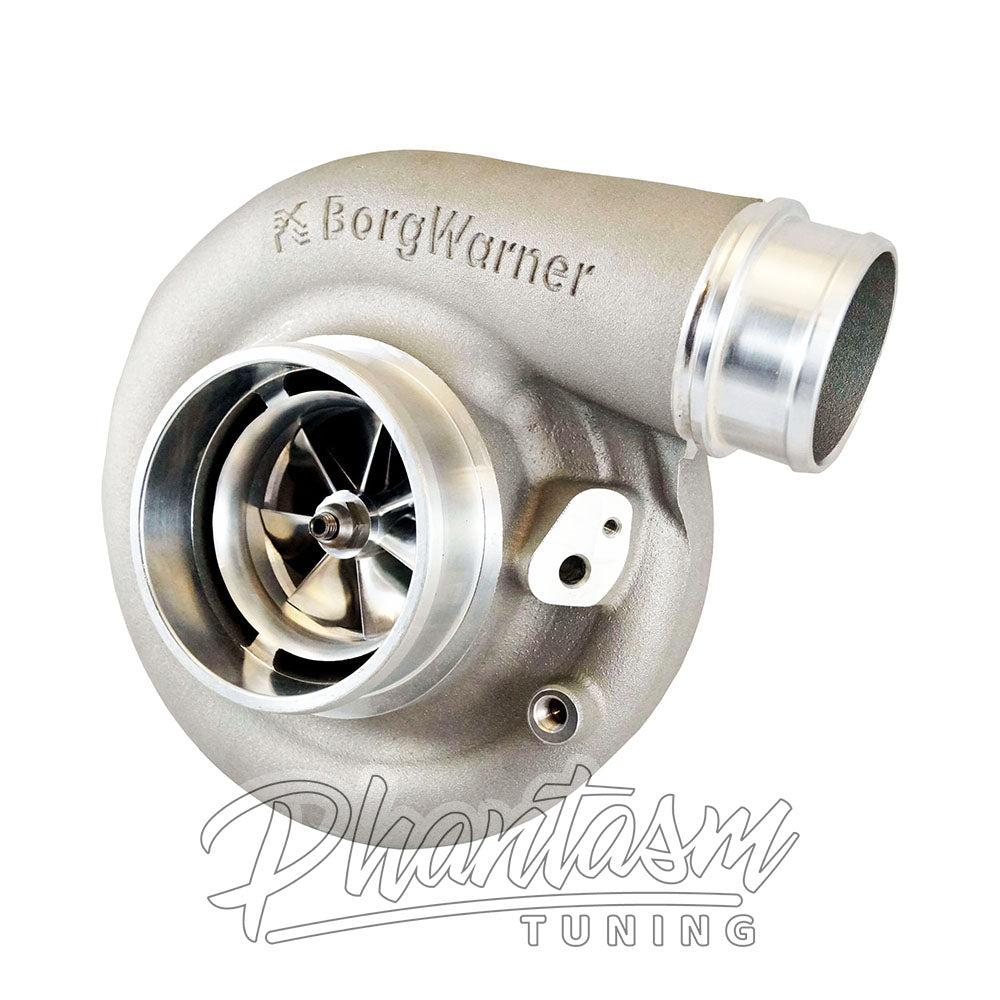

BORGWARNER / S363 SXE / 8776 AIRWERKS TURBOCHARGER / SUPERCORE ASSEMBLY (13009097006) *** 63/68 MM WHEEL *** (450 HP - 785 HP)

BorgWarner AirWerks turbochargers are designed to create reliable and consistent boost, while reducing emissions and enhancing fuel efficiency. These turbochargers, including the popular BorgWarner S475 and S480 turbos, are purpose-built, utilizing extended-tip technology and a high-efficiency turbine stage. This configuration provides ultra-fast response and more than 70 psi of boost! BorgWarner AirWerks turbos offer faster spool-up at lower engine speeds, while providing powerful top-end for the boost for in performance you desire.

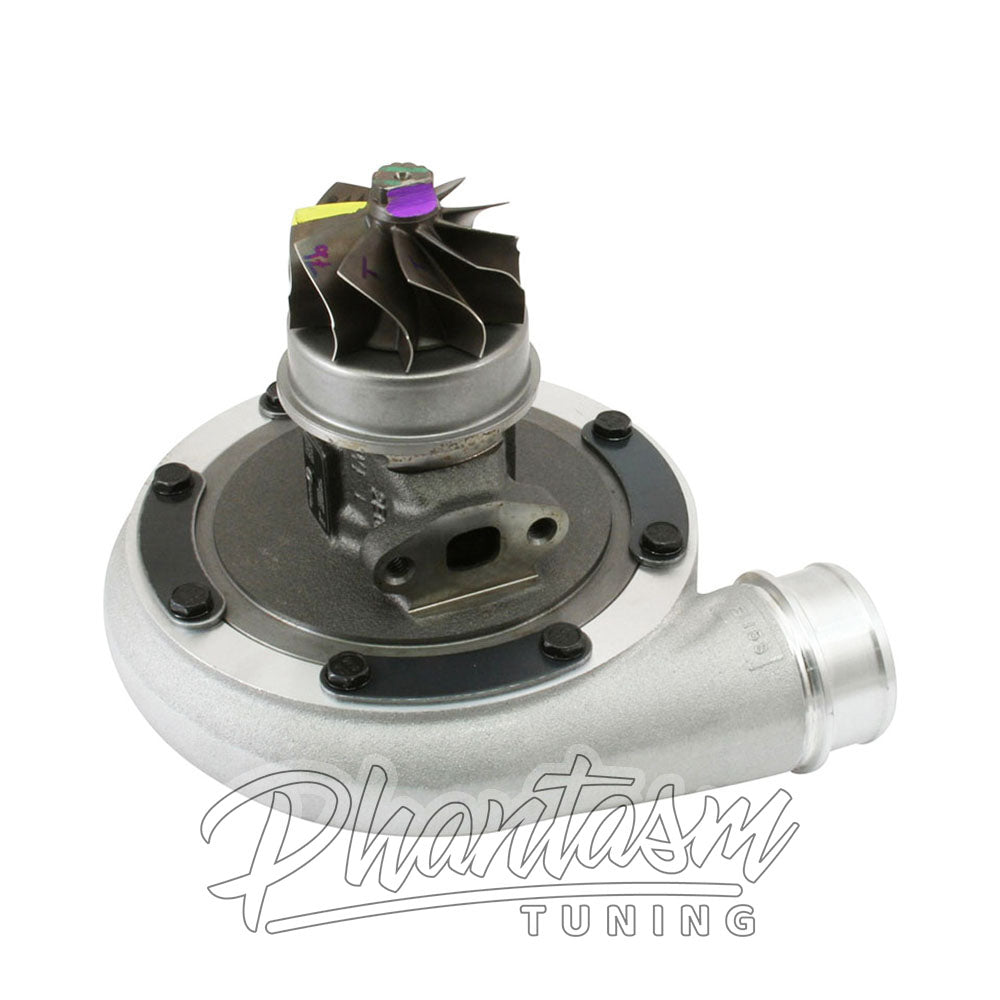

NOTE: Super Core assemblies include bearing housing, bearings, shaft, compressor wheel, compressor housing and turbine wheel. It does not include a turbine housing.

Product Features:

* 360 Degree thrust bearing.

* Integrated speed sensor port.

* Forged milled compressor wheel.

* Flexible compressor cover outlet options.

* Pre-machined boost port.

* Optimized compressor stage aerodynamics.

---

Product Specs:

* 62.99 MM / 2.48 Inch @ Compressor Inducer Diameter.

* 87.37 MM / 3.44 Inch @ Compressor Wheel O.D.

* 67.56 MM / 2.66 Inch @ Turbine Exducer Diameter.

* 76.20 MM / 3.00 Inch @ Turbine Wheel O.D.

* Straight Compressor Outlet.

* MPN (BORGWARNER-13009097006)

---

FITS: Universal Applications
