TURBOSMART / EXTERNAL WASTEGATE / GEN 5 / 45 MM HYPERGATE / V-BAND FLANGE / BLACK COLOR (TS-0553-1012)

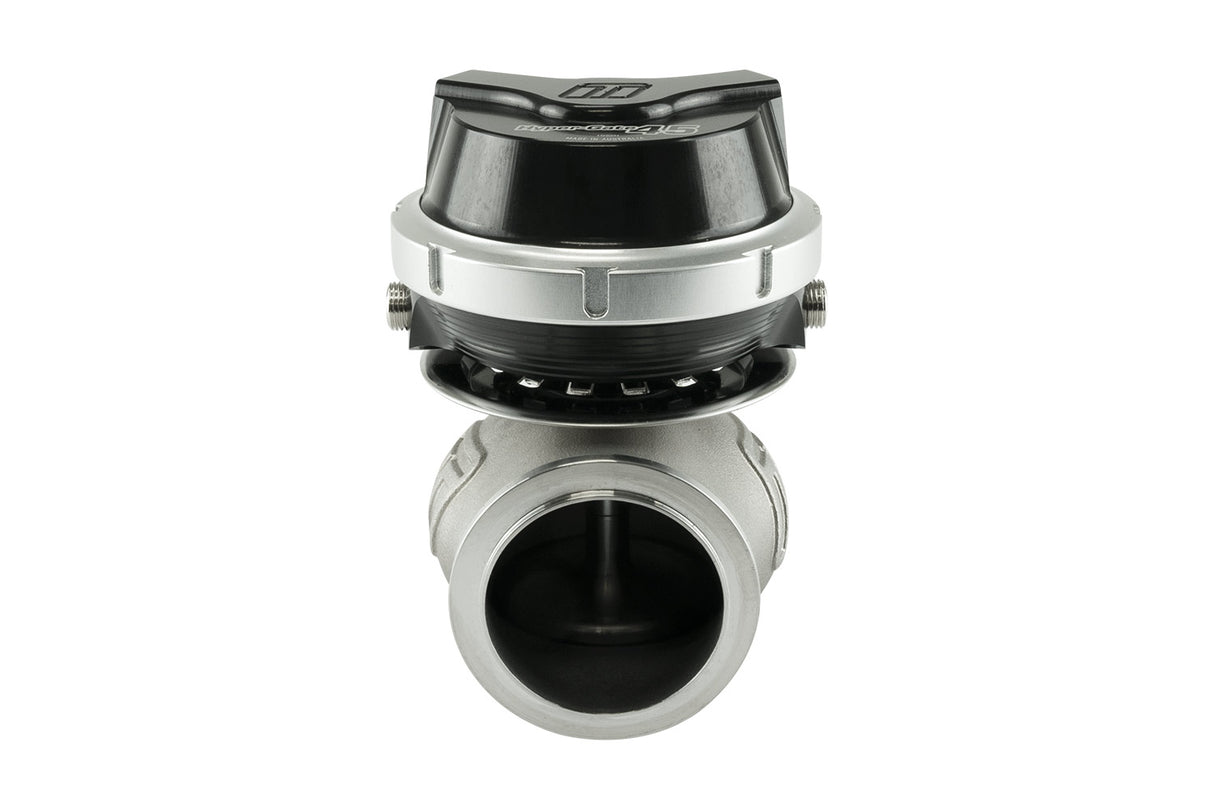

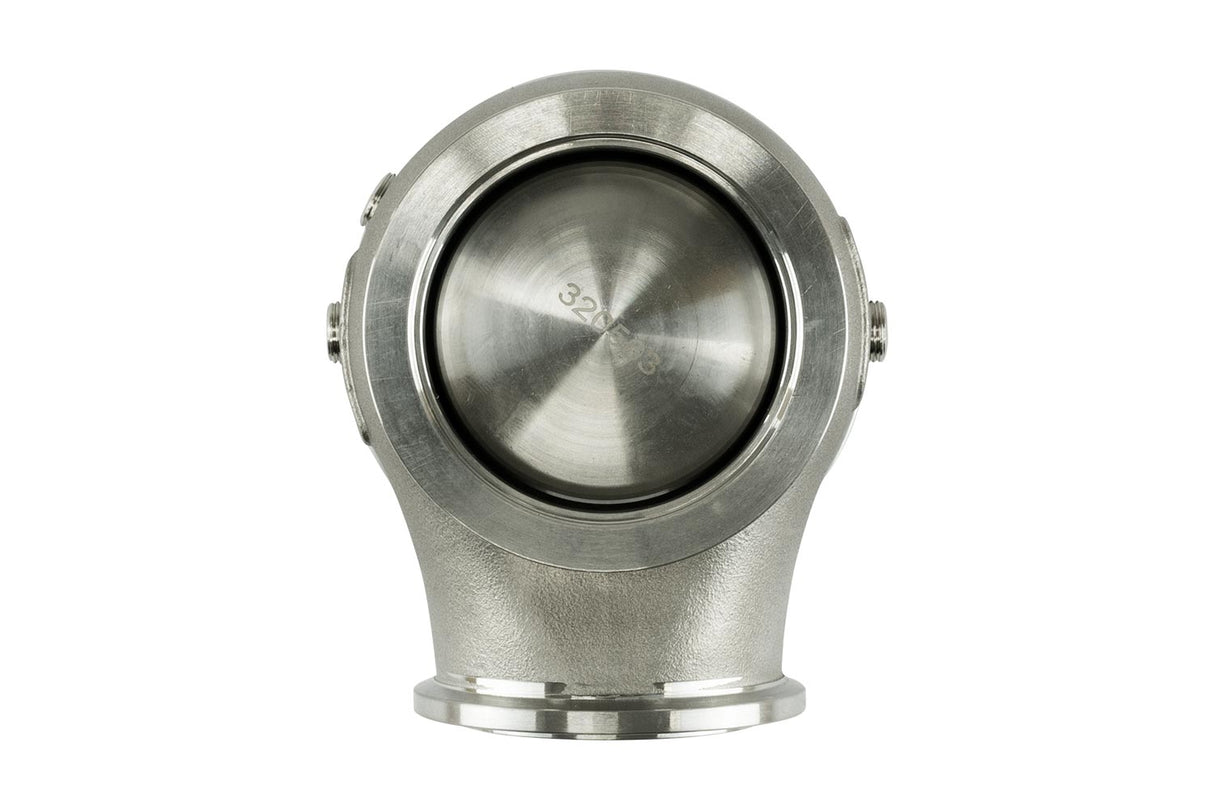

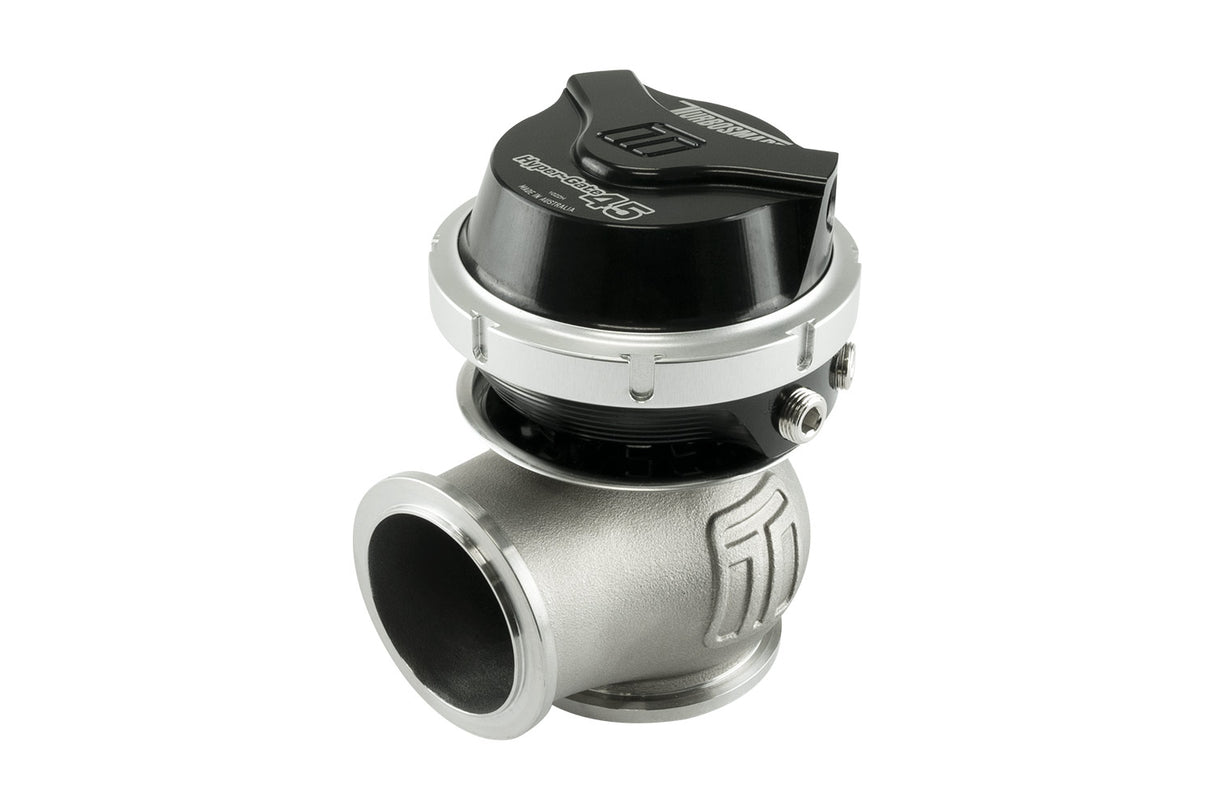

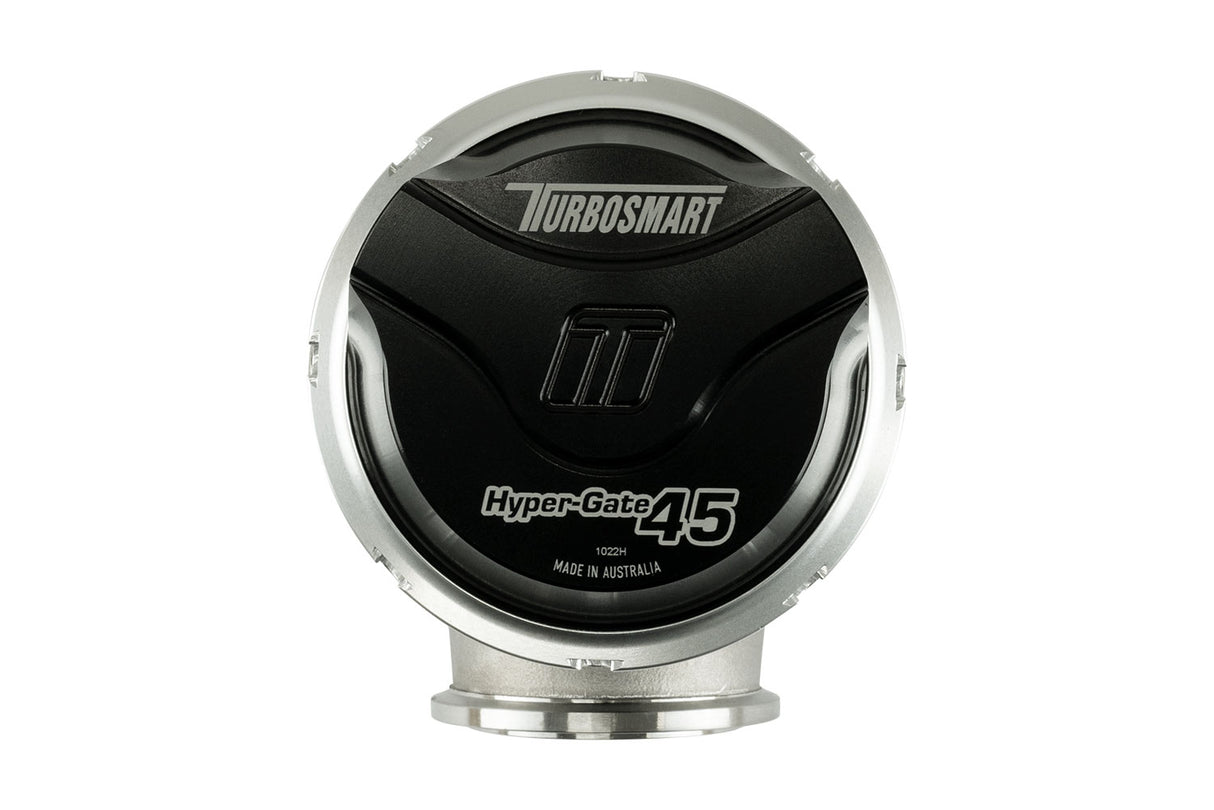

The GenV WG45 HyperGate45 External Wastegate is a Motorsport-proven, cost-effective 45mm external wastegate. The highest flowing gate of its kind. The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic. The only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV Range has more features, options, and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap, and base for easy, 360-degree optional routing of reference hoses, strap-type Vband clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Product Features:

* Class Leading Thermal Performance.

* Class Leading CFD & Bench Validated Flow Performance.

* Class Leading Fatigue Resistance.

* Optional Liquid Actuator Cooling.

* Optional Position Sensor Available Separately.

* Rotatable / Clock-able Actuator Housing.

* Nitronic 60 Valve Guide & High Temp 347 SS Body.

* 17-7 PH Stainless Steel Springs.

* Strap Type V-band clamps.

---

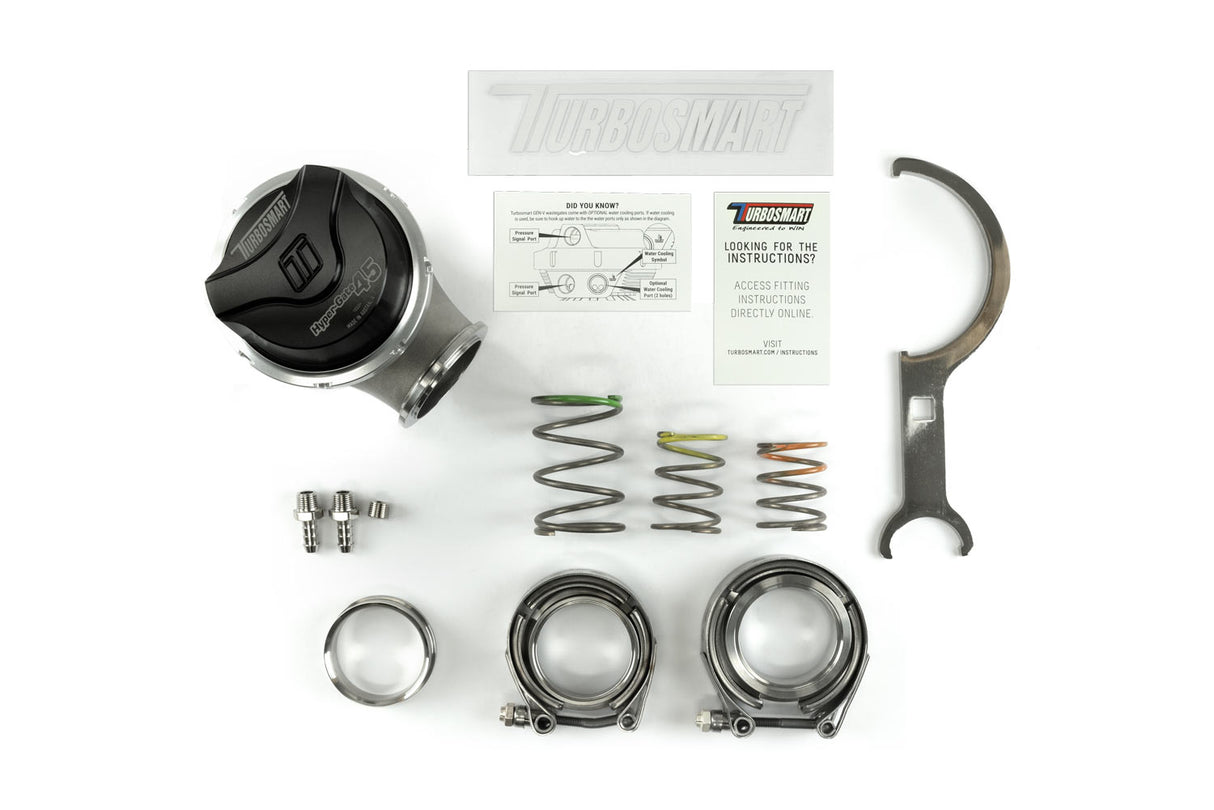

Package Content:

* GenV Wastegate Unit.

* All Springs Included. (3 PSI, 5 PSI, 7 PSI, 14 PSI).

* Locking Collar Tool.

* GenV SS316 Valve seat.

* Strap Type V-Bands.

* Inlet & Outlet Weld Flanges.

* Hose Tail & Blank Fitting Kit.

* Turbosmart Decal

---

FITS: UNIVERSAL APPLICATIONS.
