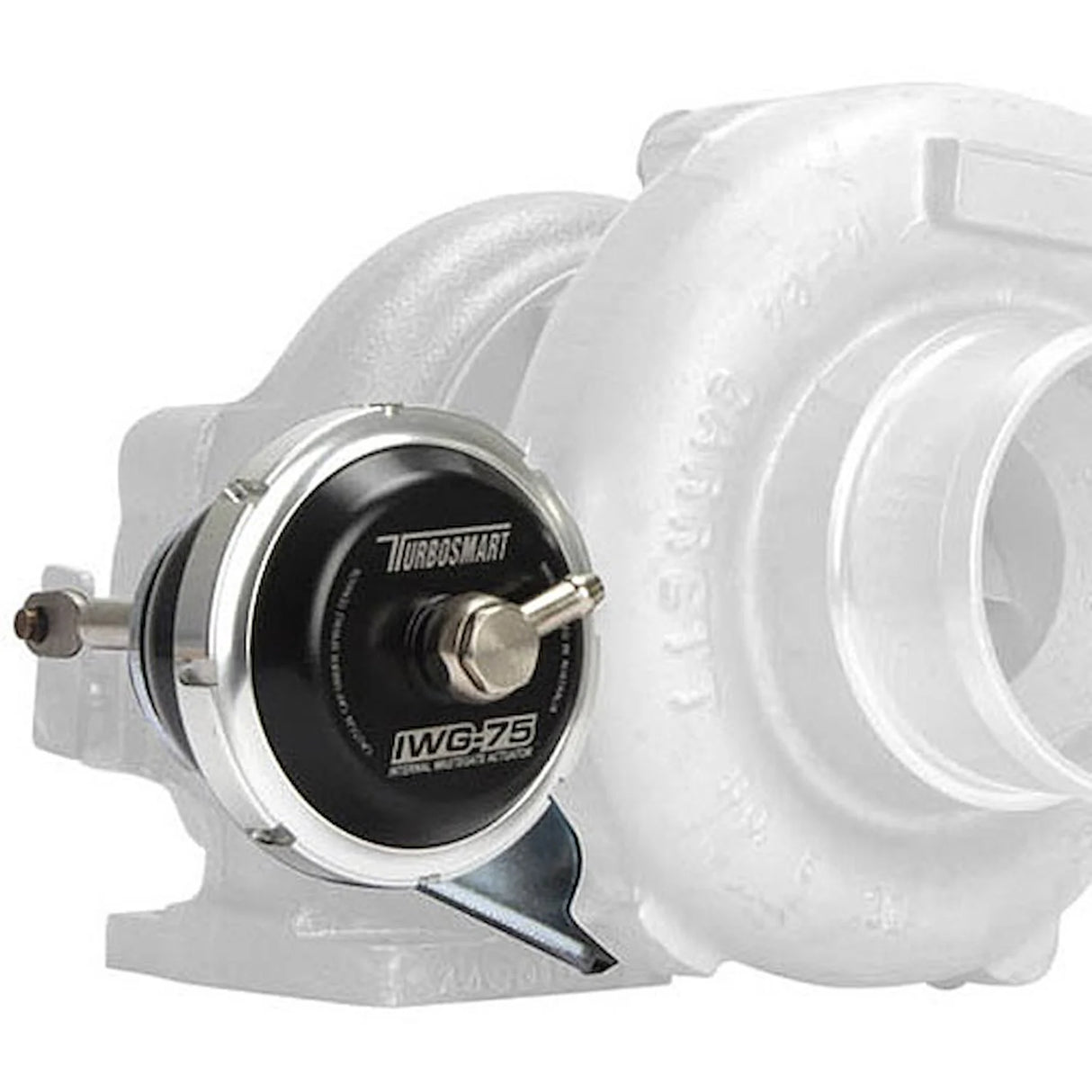

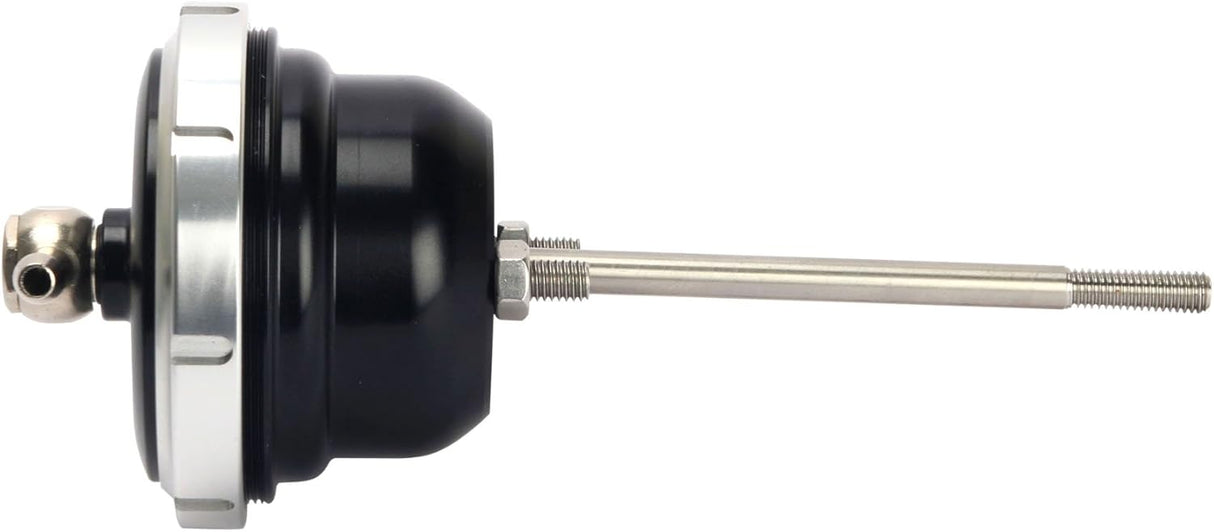

TURBOSMART / INTERNAL WASTEGATE ACTUATOR / FOR GARRETT GT2860RS DISCO PATATO / 7 PSI (TS-0625-1072)

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased "Working Ratio" over the factory equipment resulting in improved boost response, throughout the RPM range.

This Improved "working ratio" is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.

Upgrading with the same base pressure as the factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration are likely required.

Product Features:

* Proprietary Silicon Nomex Diaphragm.

* Choice of Springs from 3psi to 26psi (Optional).

* High Grade Billet Aluminum Construction.

* Stainless Steel Rods and Clevis.

* Turbosmart Unique Locking Collar System.

* This is a bolt-on fitment for the Garrett GT2860RS "Disco Potato" Turbocharger.

---

Also  Available In:

* 3 PSI / 0.2 BAR (TS-0625-1032)

* 5 PSI / 0.3 BAR (TS-0625-1052)

* 7 PSI / 0.5 BAR (TS-0625-1072)

---

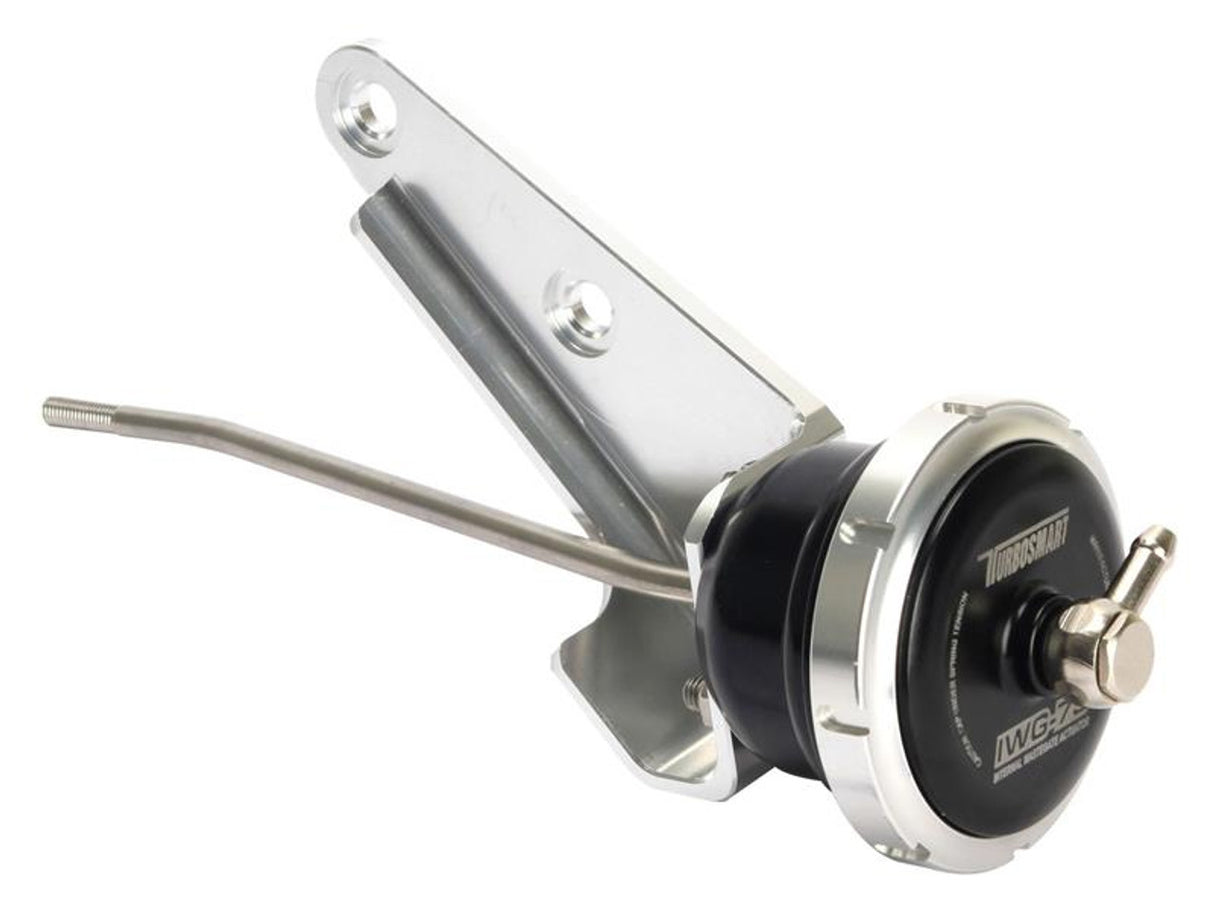

Turbosmart Internal Wastegate Actuator provides better turbo response and greater sensitivity when managing boost pressures. Supplied With: Bracket, Fitting Hardware, 6.3mm Clevis End and Nut, Brown/Purple 7 psi Middle Spring (installed).

Product Features:

* Silicone diaphragm with Nomex reinforcement to withstand high temperatures.

* High grade, billet aluminum construction.

* Stainless steel rods and connecting clevis for corrosion resistance.

* Locking Collar design cap allows for quick spring changes.

* Ideal for use with any Turbosmart boost controller.

---

FITS: GARRETT TURBOCHARGER / GT2860RS / DISCO POTATO
