RADIUM / FUEL PUMP HANGER / FITS WALBRO 450 LPH / 525 LPH (20-0792-00) *** HONDA CIVIC (1992-2000)

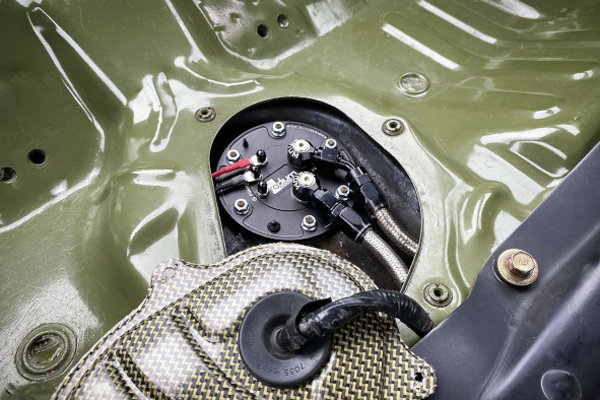

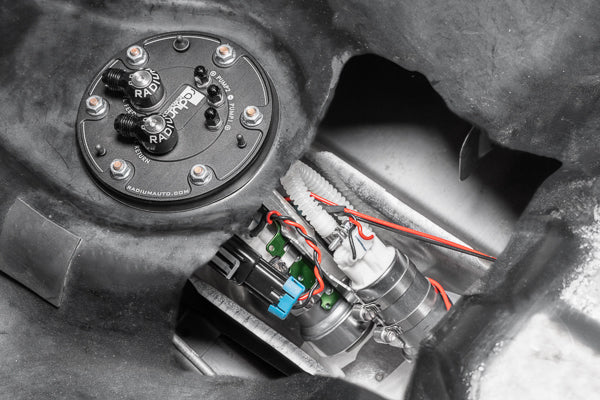

This Radium Engineering fuel hanger replaces the stock fuel pump assembly. No cutting or modifying of the vehicle's sheet metal or fuel tank is required for installation. The fuel pump is positioned in the factory collector bowl for fuel starvation protection.

PRODUCT FEATURES:

* Drop-In Installation.

* Anodized Aluminum Construction.

* Merged 8AN ORB Female Pump-Out Port.

* Fittings for Aftermarket and OEM Lines.

* Capable of 2 Pumps with Add-On.

* Compatible with Various Pumps.

* Included Fuel Pump Filter Sock.

* High Current Electrical Hardware.

* Stainless Steel Hardware and Clamps.

* Gasoline, Methanol, and E85 Compliant.

* New Anti-rotation Electrical Terminals.

---

PORT FITTINGS

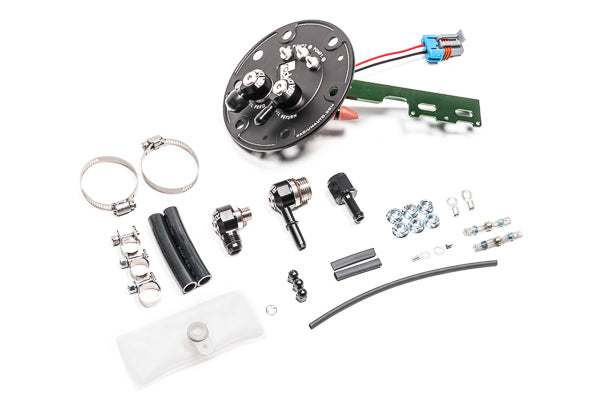

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. There are multiple adapter fittings included for the outlet.

* The preinstalled -6AN male fitting permits an aftermarket feed line.

* The 8.5mm barbed adapter fitting permits the (94-95 Integra/92-95 Civic) OEM feed line to be reused.

* The SAE quick connect fitting permits the (96-01 Integra/96-00 Civic) OEM feed line to be reused.

* For other compatible adapter fittings, click HERE.

The return inlet is tapped for 4AN ORB (7/16"-20) female threads on the top plate. There are 2 fittings included for the return port.

* The preinstalled 6.5mm barbed fitting permits the OEM return line to be reused. NOTE: 96-01 Integra and 96-00 Civic require the OEM return hose to be extended.

* The provided -6AN male fitting permits an aftermarket return line.

* For other compatible adapter fittings, click HERE.

All fittings are machined low enough to clear the fuel pump acess cover.

---

FUEL PUMPS

Part numbers 20-0790-00 and 20-0792-00 are configured to be used with 1 aftermarket fuel pump. NOTE: If 2 aftermarket pumps are required, the supplementary "dual pump add-on" (20-0796-00 or 20-0797 listed below) is also required. Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.

P/N: 20-0790-00

AEM 50-1000

AEM 50-1200

+AEM 50-1230

+AEM 50-1235

Walbro GSS342

+These pumps do NOT feature a check valve. If this is required, purchase 20-1533. NOTE: This cannot be used on the second pump.

P/N: 20-0792-00

Walbro F90000267

Walbro F90000274

Walbro F90000285

++Walbro F90000295

++These pumps do NOT feature a check valve. If this is required, purchase 20-1534. NOTE: This cannot be used on the second pump.

---

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

Notes:

* Single Walbro GSS342 (255LPH) fuel pump installations can re-use the OEM fuel pump wiring.

* It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.

* Universal fuel pump wiring kits can be found HERE. Select one for each aftermarket pump.

---

FITS:

* 1994-2001 ACURA INTEGRA

* 1992-2000 HONDA CIVIC
